Automatic Plantain Chips & Tortilla Chips Pouch Packaging Machine
The Soonkpack Automatic Plantain Chips & Tortilla Chips Packaging Machine is a fully automatic premade pouch packaging system designed for plantain chips, tortilla chips, potato chips and other fragile snack products.
The system automatically feeds, weighs, fills and seals products into premade pouches. It can be configured with a multihead weigher and different feeding systems according to the product characteristics, package weight and production capacity.
It is suitable for stand-up pouches, four-side seal bags, zipper pouches and other premade bags, providing a complete automatic packaging solution for snack and food manufacturers.
Air Compressor
Automatic Carton Erector
Automatic Carton Sealing Machine
Automatic Granule & Powder Packaging Machine
Description
Machine Overview
This automatic pouch packaging machine is designed for snack products that require gentle handling and accurate weighing, including plantain chips, tortilla chips, potato chips, popcorn and other lightweight or fragile granules.
The packaging system combines product feeding, automatic weighing, premade pouch loading, pouch opening, filling, date coding and heat sealing into one continuous process.
A multihead weigher can be used for accurate portion control, while the feeding system can be selected according to the shape, size and flowability of the product.
For higher production requirements, the packaging machine can also be integrated with upstream feeding equipment and downstream systems such as checkweighers, case packers and palletizers.
Technical Parameters: Automatic Plantain/Tortilla Chips & Granules Sachet Packaging Machine
| Specification | Details |
|---|---|
| Machine Type | Automatic Premade Pouch Packaging Machine |
| Application | Plantain Chips, Tortilla Chips, Potato Chips, Snacks |
| Bag Type | Stand-up Pouch, Zipper Pouch, Four-Side Seal Bag |
| Bag Width | 80–210 mm |
| Bag Length | 100–400 mm |
| Packing Range | 10–2500 g |
| Packing Speed | 25–60 bags/min |
| Weighing System | Multihead Weigher |
| Power | 2.5 kW |
| Voltage | 380V, 3 Phase, 50/60Hz |
Key Features
Automatic Premade Pouch Handling

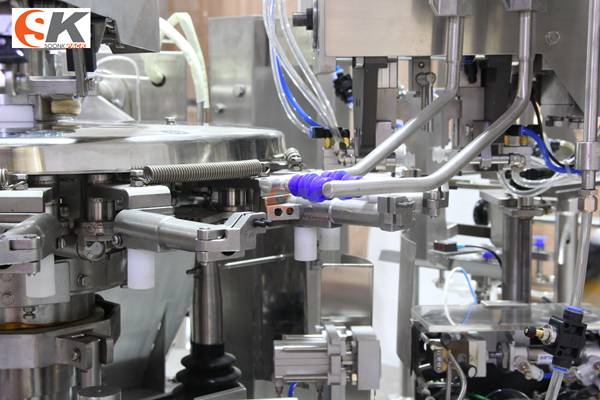

Automatically picks up, opens and positions premade pouches before filling and sealing.
Accurate Multihead Weighing
The multihead weigher provides automatic quantitative weighing for chips and other irregular granular snacks.
Flexible Pouch Formats
Compatible with stand-up pouches, zipper pouches, four-side seal bags and other suitable premade bags.
Adjustable Packing Speed
The packing speed can be adjusted according to the product characteristics, pouch size and target packing weight.
Product and Pouch Detection
The machine can detect pouch feeding and pouch opening conditions to help reduce product and packaging material waste.
Flexible Feeding and Weighing Options
Different conveyors, elevators and weighing systems can be selected according to the characteristics of the product and required production capacity.
Easy Operation
PLC and touchscreen control provide convenient operation and adjustment of the packaging parameters.
Schematic Diagram
Applications
Plantain Chips:Suitable for automatic weighing and premade pouch packaging of plantain chips.
Tortilla Chips:Suitable for packing tortilla chips into stand-up pouches, zipper bags and other premade bags.
Potato Chips:Suitable for automatic portion weighing and pouch sealing of potato chips.
Other Snack Products:The machine can also be configured for popcorn, puffed snacks, crackers, french fries and other granular or fragile food products.
The machine is designed for a variety of premade pouch formats, including:
- Stand-up pouches
- Zipper stand-up pouches
- Four-side seal pouches
- Three-side seal pouches
- Eight-side seal zipper pouches
- Suitable paper and composite premade bags
The suitable pouch format depends on the bag material, dimensions, filling weight and sealing requirements.
Why Choose This Premade Pouch Packaging Machine?
Automatic Production
Reduces manual pouch handling and integrates weighing, filling and sealing into one automatic process.
Flexible Packaging
Supports different premade pouch formats and packing weights.
Snack Product Compatibility
Suitable for plantain chips, tortilla chips, potato chips, popcorn, cookies and other granular snacks.
Complete Packaging Solutions
The system can be configured with conveyors, weighers, inspection equipment, case packers and palletizers according to production requirements.
FAQ
What products can this packaging machine pack?
The machine is suitable for plantain chips, tortilla chips, potato chips, popcorn, cookies and other granular snack products.
What type of bags can the machine use?
It can work with suitable premade stand-up pouches, zipper pouches, three-side seal bags, four-side seal bags and other composite premade pouches.
What is the packing weight range?
The standard specification supports packing weights from 10 to 2500 g. The actual range depends on the product and packaging configuration.
What is the packing speed?
The machine can reach approximately 25–60 bags per minute, depending on the product, pouch size and packing weight.
Can the machine pack different snack products?
Yes. The feeding and weighing systems can be configured according to the characteristics of different products.
Can Soonkpack provide a complete packaging line?
Yes. The packaging system can be configured with feeding, weighing, pouch packing, inspection, case packing and palletizing equipment according to the customer’s production requirements.
