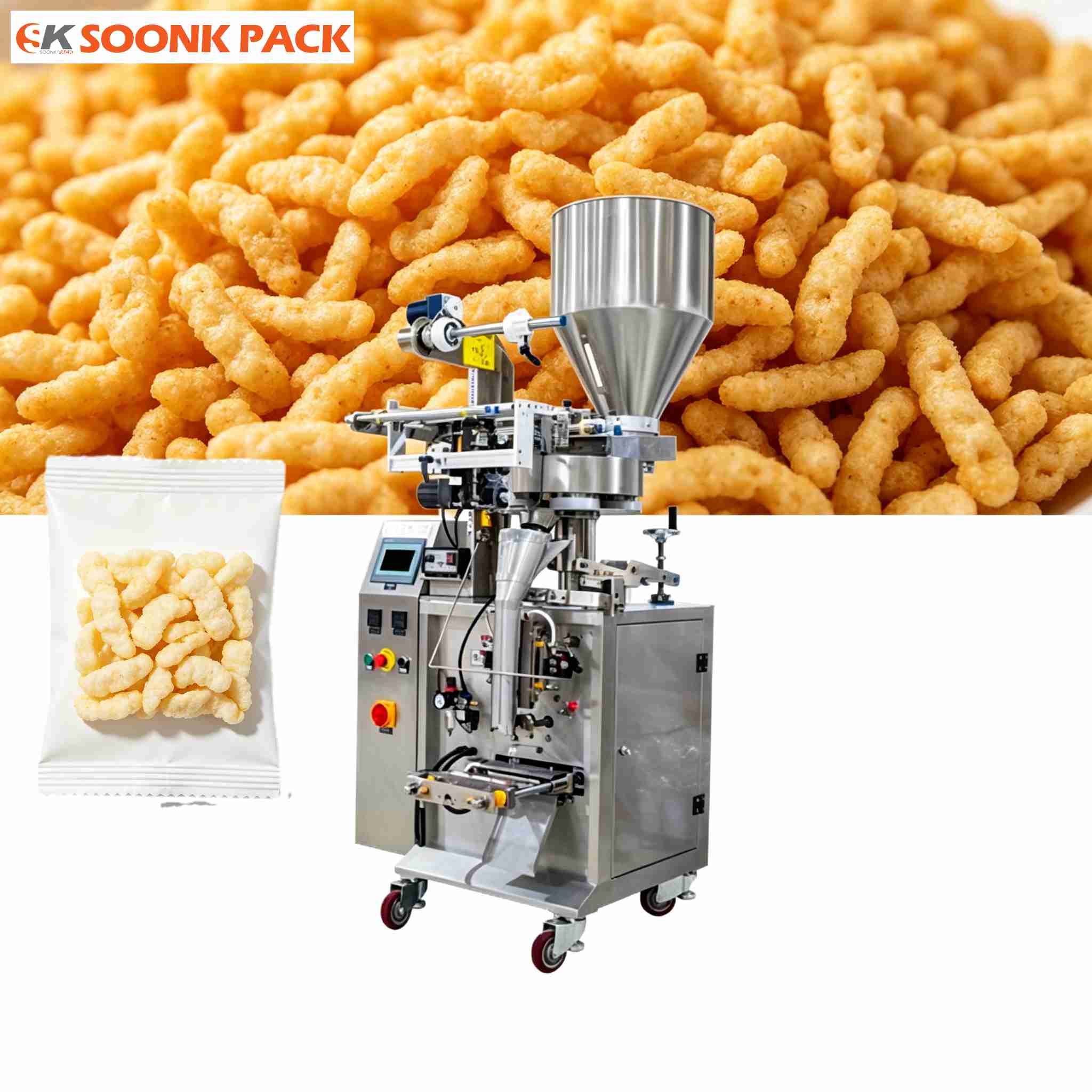

Measuring cup turntable quantitative potato chip snack packaging machine
The Soonkpack SK-L320 automatic rotary cup-filler packaging machine is designed for the small-weight packaging of potato chips, puffed snacks, and other lightweight solid products.
The machine utilizes a rotary volumetric cup system to accurately measure the product before filling. It is suitable for products with relatively uniform particle size and density, making it ideal for small-format packaging such as bags of potato chips and snacks.
This packaging system automates the processes of measuring, bag forming, filling, sealing, and cutting. Additionally, it can be integrated with a feeding system and a finished product conveyor to create a highly automated packaging line.
Description
Automatic Measuring Cup Potato Chip Packaging Machine Working Video
This video shows the SK-L320 measuring cup packaging machine packing 20 g potato chips.
Potato chips are fed into the rotary measuring cup system, which measures a preset quantity of product before transferring it to the packaging section. The vertical packaging machine forms bags from roll film, fills the measured potato chips, seals the bags and cuts the packages automatically.
In this demonstration, the machine is configured for multi-bag packaging with a 5-bag back-seal package format. The actual packaging speed depends on the product, target weight, bag size and machine configuration.
Technical Specifications of SK-L320
| Item | Specification |
|---|---|
| Model | SK-L320 |
| Machine Type | Vertical Form-Fill-Seal Packaging Machine |
| Measuring System | Rotary Measuring Cup |
| Main Application | Potato Chips, Puffed Snacks & Small Solid Products |
| Packaging Material | Composite Film / PE Film |
| Maximum Film Width | 420 mm |
| Bag Style | Pillow Bag |
| Bag Length | 50–200 mm |
| Bag Width | 30–150 mm |
| Packaging Speed | 30–90 bags/min |
| Film Thickness | 0.04–0.08 mm |
| Air Consumption | 0.65 MPa, 2.5 m³/min |
| Power Supply | 220 V, 50/60 Hz |
| Machine Size | 1000 × 840 × 1900 mm |
| Machine Weight | 350 kg |
Key Features of the Measuring Cup Potato Chip Packaging Machine
1. Rotary Measuring Cup System
The rotary measuring cup provides quantitative product measurement and is suitable for products with relatively consistent size and density.
2. Suitable for Small-Weight Snack Packaging
The SK-L320 is particularly suitable for small packages of potato chips and puffed snacks, such as 20 g snack bags.
3. Automatic Bag Forming and Filling
The vertical packaging system forms bags directly from roll film and automatically fills the measured product into each bag.
4. Multi-Bag Packaging
The machine can be configured for multi-bag packaging, including the 5-bag back-seal format shown in the video demonstration.
5. Automatic Sealing and Cutting
After filling, the machine automatically seals and cuts the packaging film to complete the individual or linked packages.
6. Flexible Feeding Options
A feeding machine can be added for automatic product loading, reducing manual feeding requirements.
7. Finished Product Conveying
A finished product conveyor can be added at the discharge outlet to transfer packaged products to the next process.

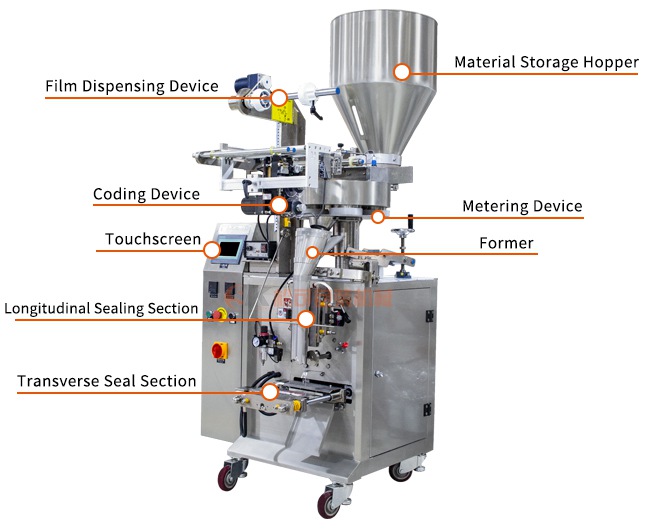

quantitative potato chip snack packaging machine Display diagram
Applications
Potato Chips & Snack Products
Potato Chips
Tortilla Chips
Plantain Chips
Puffed Snacks
Shrimp Chips
Popcorn
Other Solid Products
Peanuts
Roasted Seeds
Small Grains
Rice
Candy
Biscuits
The suitable measuring system depends on product size, shape, density, target weight and required packaging accuracy.
Frequently Asked Questions
What products can the SK-L320 measuring cup packaging machine pack?
It is suitable for potato chips, puffed snacks, shrimp chips, peanuts, roasted seeds, popcorn and other suitable solid products.
What weighing system does the machine use?
The SK-L320 uses a rotary measuring cup system rather than a multihead combination weigher.
Is the machine suitable for 20g snack bags?
Yes. The machine shown in the video is configured for 20g snack packaging. Actual performance depends on product characteristics and packaging requirements.
What bag types can the machine produce?
The machine can be configured for pillow bags, back-seal bags, three-side-seal bags and four-side-seal bags, depending on the packaging configuration.
Can the machine automatically feed potato chips?
Yes. A feeding machine can be added to automatically transfer potato chips or other suitable products into the measuring system.
Can the packaging line be customized?
Yes. The feeding system, measuring cups, packaging machine, bag format and finished product conveyor can be configured according to the product and production requirements.
