Automatic 5-10kg Ice Packaging Machine Vertical Pouch Packing Machine

Video Demonstration: Automatic 5–10kg Vertical Pouch Ice Packaging Machine

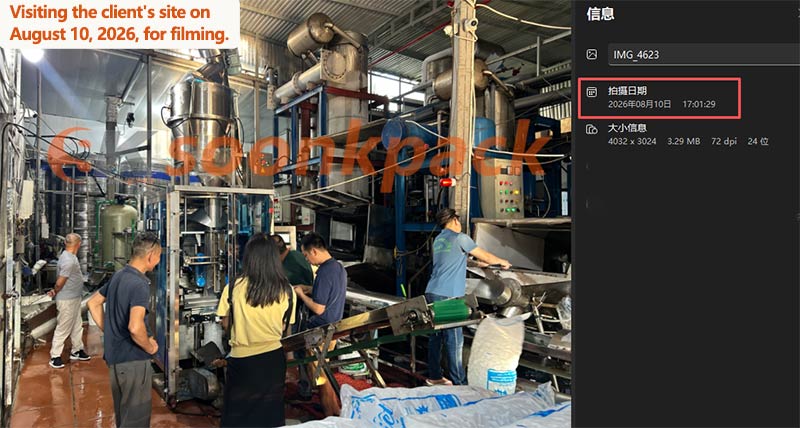

In the video, our SK-L780 ice packaging machine is linked to three 5-ton ice makers for a fully automated ice-making and packaging process.

The primary workflow is as follows: after the three ice makers produce the ice, a conveyor belt transports the cubes to the hopper of our Z-type chain-plate elevator, which lifts them to a specialized dual-head auger scale equipped with photoelectric sensors to monitor material levels. The ice is then metered by the auger scale. The SK-L780 packaging machine forms the bag, prints the production date, fills the bag with the measured ice, seals and cuts it, and discharges the finished product via an output conveyor. We can customize the configuration of the ice makers and packaging machine to suit your facility’s layout.

Features and Advantages of the Fully Automatic Vertical Bagging Machine for 5–10kg Ice Cubes

1.Incline Heavy-Duty Reinforced Frame

Constructed with high-strength 304 stainless steel square tubing and fully welded structural joints, this frame ensures absolute rigidity and zero vibration during high-speed operations. It effortlessly withstands the high-impact dynamic loading of 10kg heavy-duty ice drops. The uniquely engineered inclined design extends the sliding path during bag forming, maximizing internal bag volume and accommodating longer bag lengths—making it ideal for large-capacity ice packaging applications ranging from 5–10kg and beyond.

2.Pre-Clamping Impact Buffer & Bottom-Support Elevating System

a:Pre-Clamping Impact Buffer:

Instantly clamps and dampens shock during rapid ice discharging. This significantly mitigates downward gravitational tension on the plastic film, preventing sharp ice corners from puncturing or tearing the bag.

b:Bottom-Support System:

Secures and supports heavy finished ice bags (5–10kg) from the bottom during filling and sealing cycles. By drastically reducing strain on the horizontal sealing bars and preventing film stretch distortion, it delivers exceptionally neat, leak-proof, and damage-free heat seals.

3.Anti-Slip Collar-Type Bag Former

Precision-engineered with ultra-smooth transition curves and zero blind spots, this collar-type bag former features custom-welded stainless steel anti-slip ribs. The textured contact surface increases pulling friction, effectively eliminating film slippage, wrinkling, jamming, or tearing in cold and high-humidity operational environments to ensure smooth film transport and flawless pouch geometry.

4.Anti-Trapping Heat Sealing Mechanism

Driven by high-precision pneumatic or servo actuator systems for cross and longitudinal sealing, this mechanism incorporates intelligent anti-trapping safety sensors alongside accurate PID temperature control. It actively prevents product entrapment within the seal zone, ensuring reliable, high-integrity heat seals that resist rupturing under heavy 5–10kg loads.

Specifications for 5–10kg Fully Automatic Vertical Bagged Ice Packaging Machine

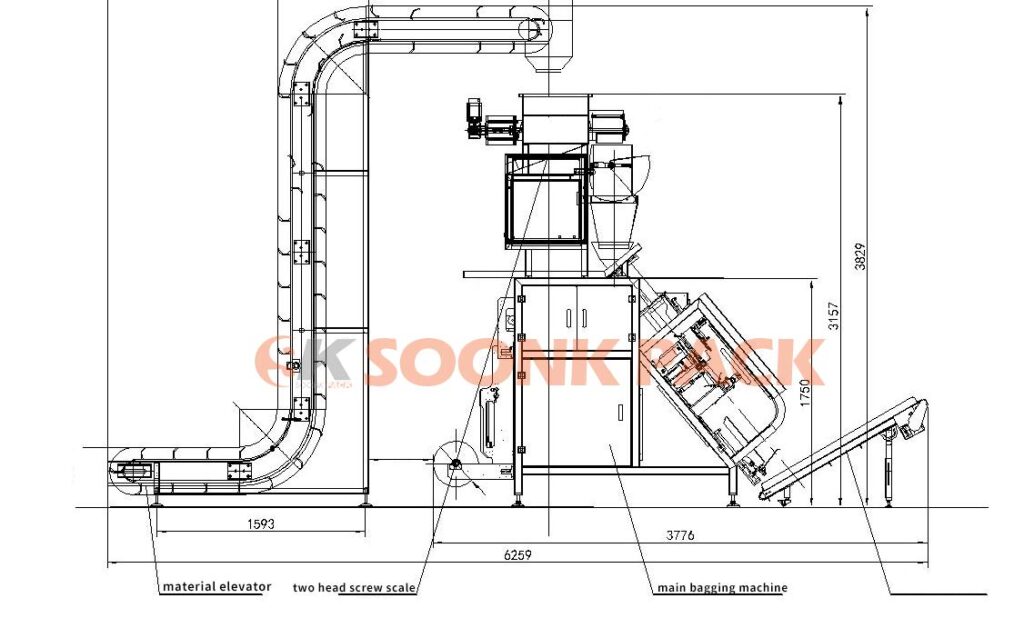

Dimensional drawings for a 5–10 kg fully automatic vertical bagging machine for ice cubes.

Application Range of 5–10kg Fully Automatic Vertical Bagged Ice Packaging Machine

Fully automatic ice packaging is suitable for packaging cube ice, tube ice, crushed ice, flake ice, edible ice, transportation ice, granular ice, etc., with a packaging range of 5-10 kg.

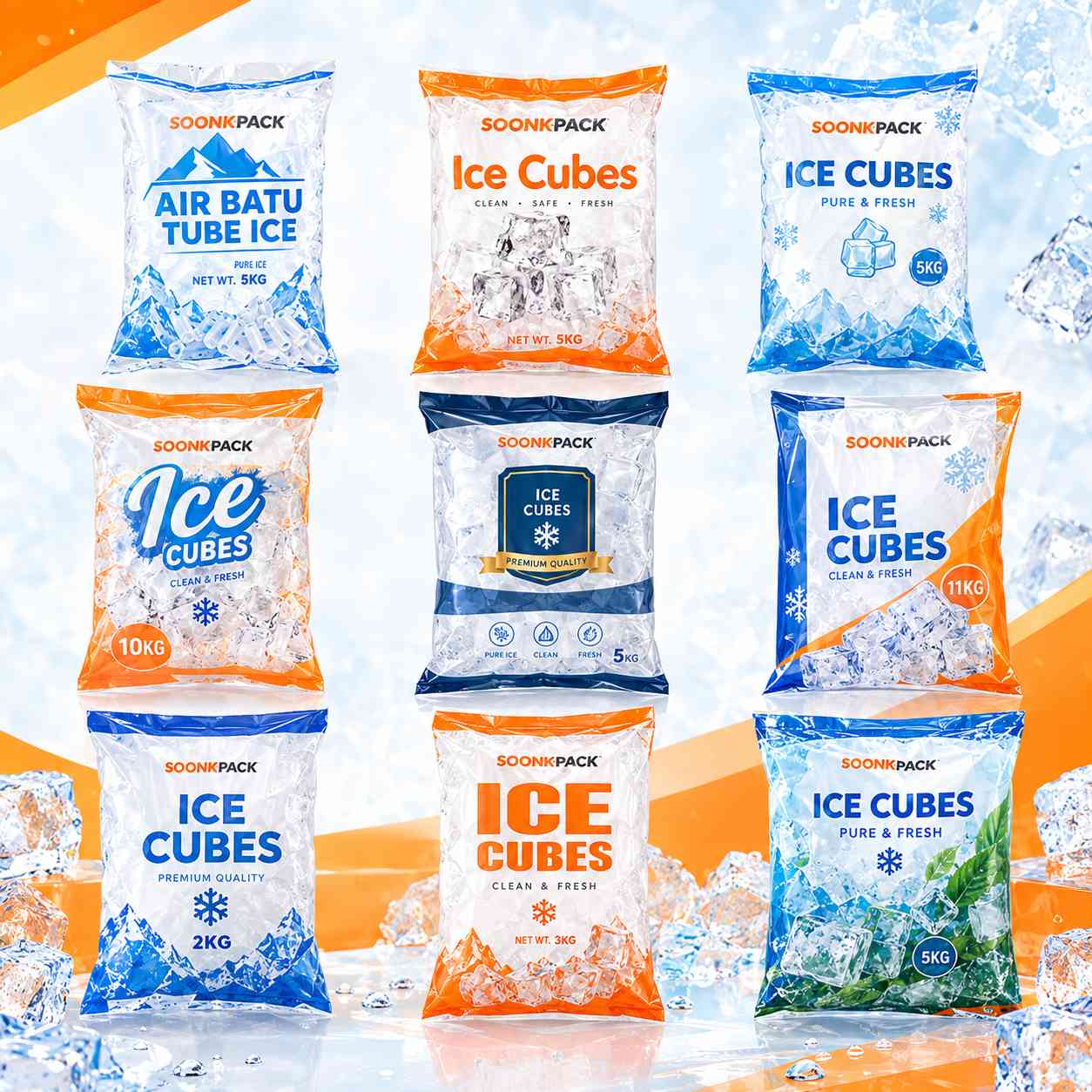

Actual photo showing bags from the 5–10kg fully automatic vertical bagging machine for ice cubes.

5–10kg fully automatic vertical bagging machine for ice cubes. Our standard bag type is mainly a back-sealed bag type. The back-sealed bag type is upper and lower seals, with one seal on the back (generally the size of the back seal is 20mm). The 780 of our model SK-L780 is The width of our packaging film, if replaced by a bag, the maximum bag size is 380mm (the calculation formula is film width-back seal/2=780-20=760/2=380mm). For packaging film, we can choose composite film or PE film (PE film needs to be equipped with a PE device)

Packaging and shipping for 5–10 kg fully automatic vertical ice bagging machines

Generally, before our packaging machinery leaves the factory and is shipped, each independent part of the automatic ice packaging machine must be disassembled and cleaned before packaging. First, wrap it with stretch film, and then use it to pack the wooden box into a wooden box to avoid transportation problems. damage to the packaging machine.

Warranty and After-Sales Service Information for the 5–10 kg Fully Automatic Vertical Ice Packaging Machine

After-sales service and commissioning for the SK-L780-5-10kg fully automatic square ice packaging machine

Soonkpack packaging machinery comes with a one-year warranty; we provide free replacement parts for any damage not caused by human error.

We offer on-site after-sales service and training.

If issues arise during commissioning, we can first provide guidance via video; if the problem cannot be resolved this way, we will arrange for on-site service.
Our equipment is reliable and fully commissioned before leaving the factory, so issues rarely occur.

Our packaging machines are simple to set up and operate.

Ice Cube Packaging Machine Customer Case Study

Soonkpack brings extensive real-world expertise to the field of automated ice packaging, with our equipment deployed in major ice manufacturing plants and cold-chain logistics companies worldwide.

Client Success Story: Driving Efficiency & Cutting Costs

A large-scale commercial ice plant with a daily production capacity of 150 tons previously relied on heavy manual labor for bagging, weighing, and manual sealing. Facing low operational efficiency and high turnover due to harsh, cold-and-wet working conditions, the factory required a workforce of 50 operators for packaging and related tasks.

After integrating the Soonkpack SK-L720 Fully Automatic Ice Packaging Line, the plant achieved end-to-end automation—from ice discharging and weighing to bagging and sealing:

Workforce Optimization: The packaging team was streamlined from 50 workers down to just 20—eliminating 30 manual labor positions.

Massive Output Increase: Packaging throughput multiplied significantly, allowing the facility to effortlessly absorb peak-season summer demand surges.

Drastic Cost Reduction: The automation upgrade saves millions in annual labor and management expenses, delivering a swift Return on Investment (ROI).

If you are looking to replace manual labor with fully automated ice packaging equipment, boost factory efficiency, and lower operational costs, contact Soonkpack（WhatsApp/wechat +8618902413611） today for a customized ice packaging solution! WhatsApp/wechat：+8618902413611
