Parallel Manipulator

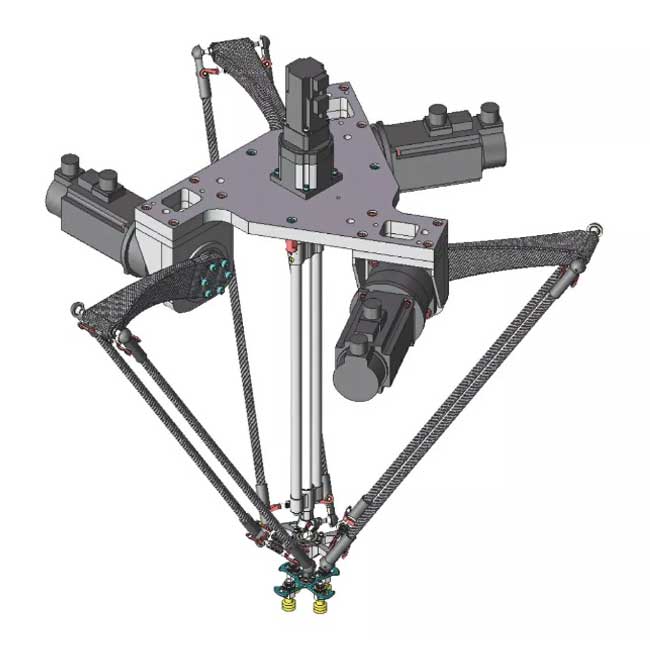

Parallel robot arm comprises a parallel Delta structure especially well suited for fast and precise handling and assembly of components. The reduced weight in motion and the well-engineered mechanics and direct drive motors increase considerably the robot's performance in speed, repeatability, and precision.
- Strong Material: Mainly made of carbon fiber and aluminum alloy composition.
- High Motion Accuracy: Target object could achieve dynamic tracking picking and placement by being captured by a sensor or vision system.
- Fast Movement: Could achieve up to 200 beats under the leapfrog test.
- Identify & Track: With visual positioning, conveyor tracking sensor.
ADD TO CART
Product Details
Parameter
Model | SK-400 | SK-800 |
Axis | 4 | 4 |
Movement Diameter (mm) | 400 | 800 |
Max Pick-up Height (mm) | 120 | 410 |
Payload (kg) | 0.5 | 3 |
Max Load (kg) | 3 | 5 |
Repeatability (mm) | ±0.1 | ±0.1 |
AnglePositioning Accuracy (°) | ±0.1 | ±0.1 |
Beats Times / min | 160 | 280 |
IP Class | IP54 | IP54 |
Installation | Tabletop | Overhead mounting |
Power Supply (v) | AC 380 / 220 | AC 380 / 220 |
Weight (kg) | 16 | 64 |
Dimension (mm) | 605*605*482 | 1000*1000*718 |
