automatic sachet water packing machine factory,price
This liquid pouch packaging machine can package not only water, but also juice, detergent, soy sauce, beverages, shampoo, shower gel, and other small pouches.For more information, please contact WhatsApp at +8618902413611.
Description
automatic sachet water packing machine — Packaging Video

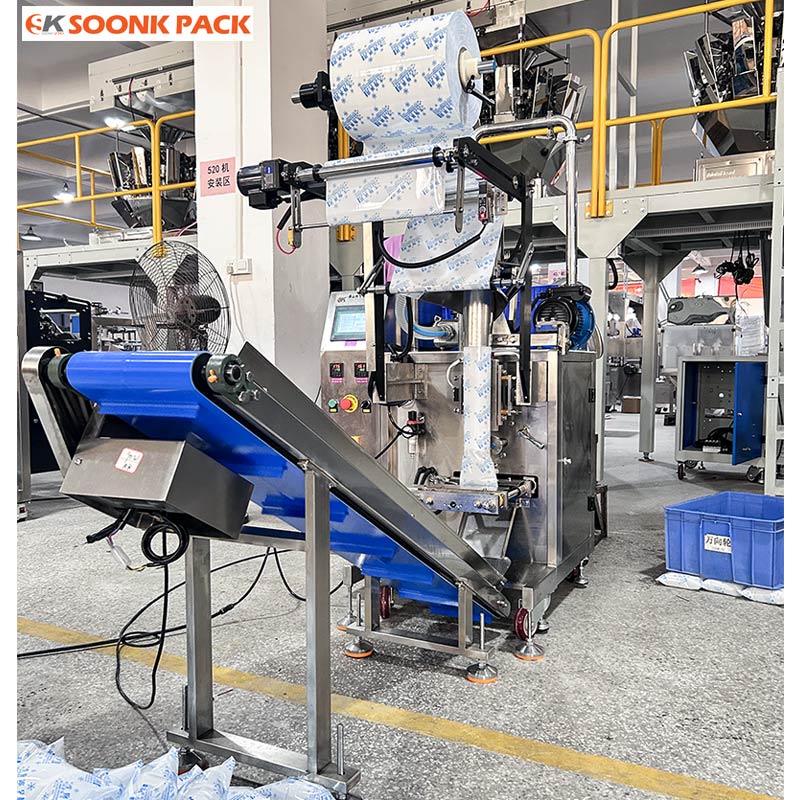

The video shows the packaging of bagged water, weighing 500 grams each, with a packaging speed of approximately 50-66 bags per minute. A pneumatic 320 liquid packaging machine is used, with a fully automatic feeding device to the circular storage hopper, fully automatic metering, bag making by the 320 packaging machine itself, production date printing, product filling, sealing, cutting, and output, and finished product output via a conveyor belt.
| Mechanical Station | automatic sachet water packing machine | |||||
| Types of Packaging Bags | Optional back seal bags, three-side seal, and four-side seal. | |||||
| Bag Size | W: 30-150mm L: 50-200mm | |||||
| Packing Weight | 50-300ml | |||||
| Packing Speed | 15-65bags / min (the speed is determined by the feeding material itself and the filling weight) | |||||
| Mechanical Weight | 350kg | |||||
| Power Specifications | 220V three-phase 50HZ / 60HZ | |||||
| Total Power | 2KW | |||||
| Compressed Air Consumption | 0.6m3 / min (provided by the user) | |||||
automatic sachet water packing machine Performance Features:
1.The machine is featured with compact structure durable logical design and precise. Adopts light sensor control system , stepping motor control film transporting system , reliable ,
and stable performance.
2.Using VVVF , operation is much stable , low noise and low malfunction.
3.It can finish automatically all processes , such as measuring , filling and bag marking. With spring pressure knife principle , pneumatic cutting , 51inking bags is more stable.
4.You can choose from a feeder, storage hopper, or finished product conveyor, depending on your needs; these are all customized. Prices vary depending on the specific configuration. Please contact customer service for details.

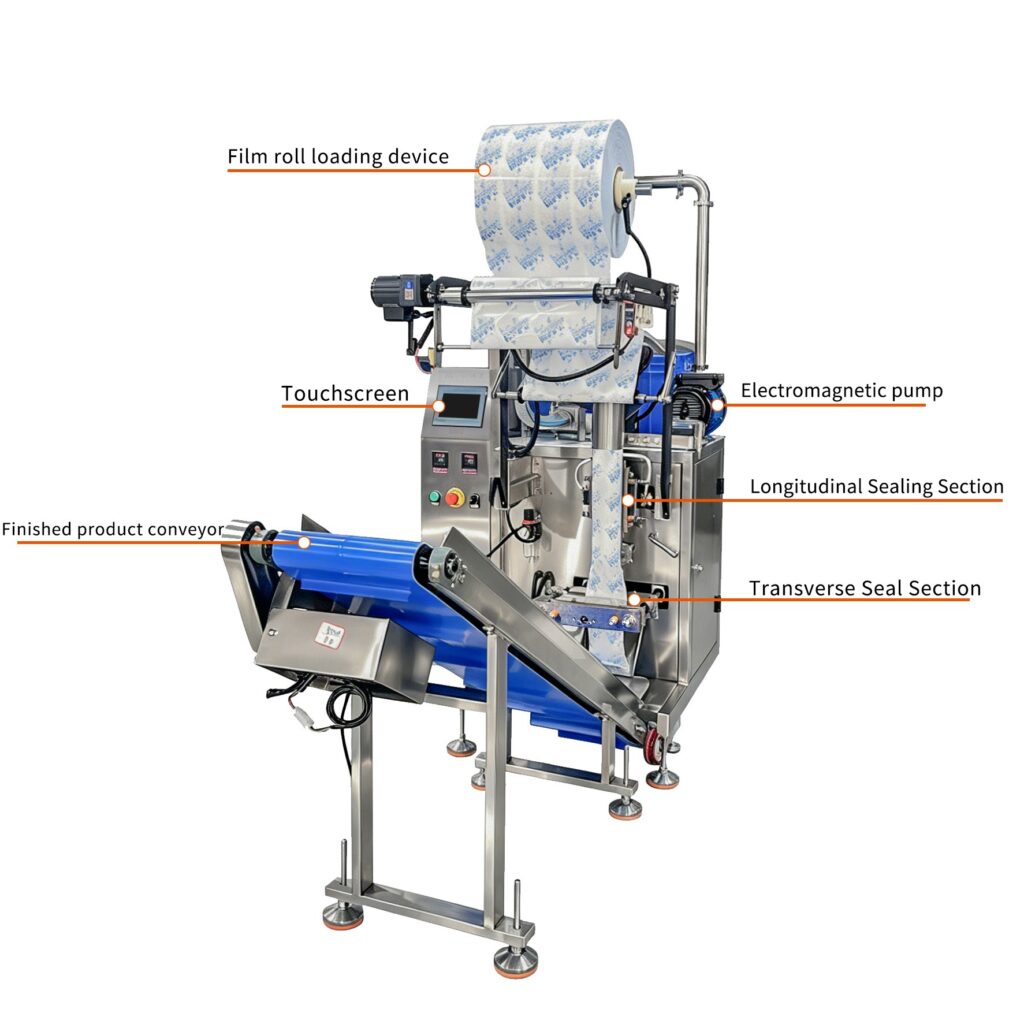

automatic sachet water packing machine — Schematic Diagram
Automatic sachet water packing machine— Applications
In addition to water, the bagged water liquid packaging machine can also package resin gels, coconut milk, egg whites, fruit juices, soy sauce, vinegar and other liquid products.
Automatic sachet water packing machine— Pouch Types
Bags can be selected according to needs, including back-sealed bags, three-side sealed bags, four-side sealed bags, etc..
For more information about liquid bagged water packaging machines, please contact us via WhatsApp/WeChat: +8618902413611
