Powder/Granule Vertical Packaging Machine
This automatic packaging machine is mainly for the packaging of granular products of 10kg and below. It is a large bag packaging machine with a unique design. There are two kinds of sealing methods: composite film and PE film. Imported servo control, the overall operation is stable, and the production output of large packaging bags can be improved.

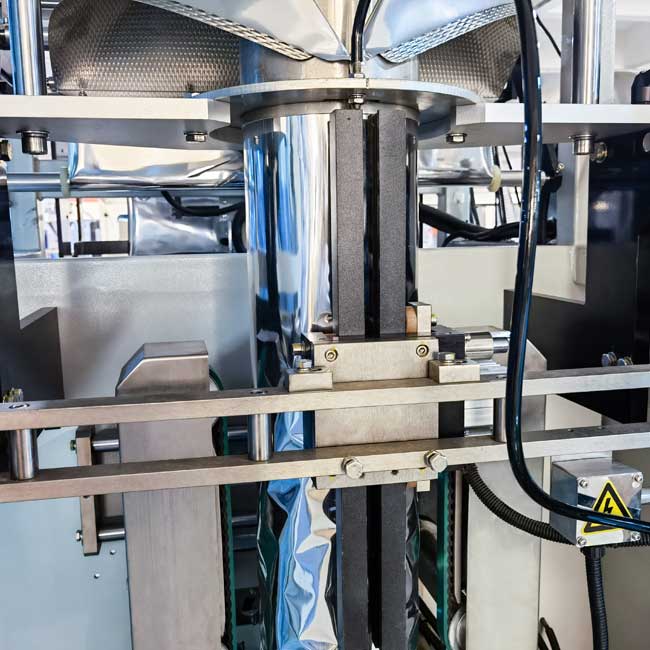

- Servo double film drawing system is adopted to ensure the smooth transmission of packaging film and the formation of bags.

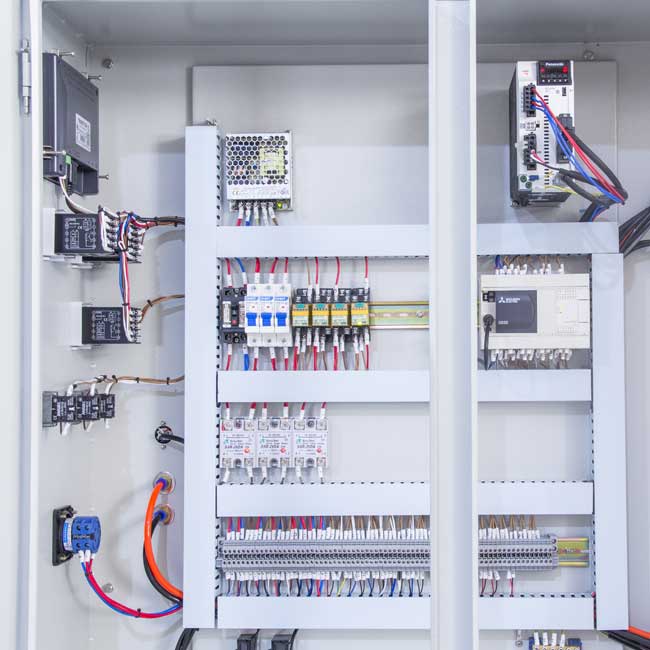

- PLC control, imported driver, imported touch screen, man-machine interface, high degree of automation, simple operation procedure, high sensitivity of touch screen.

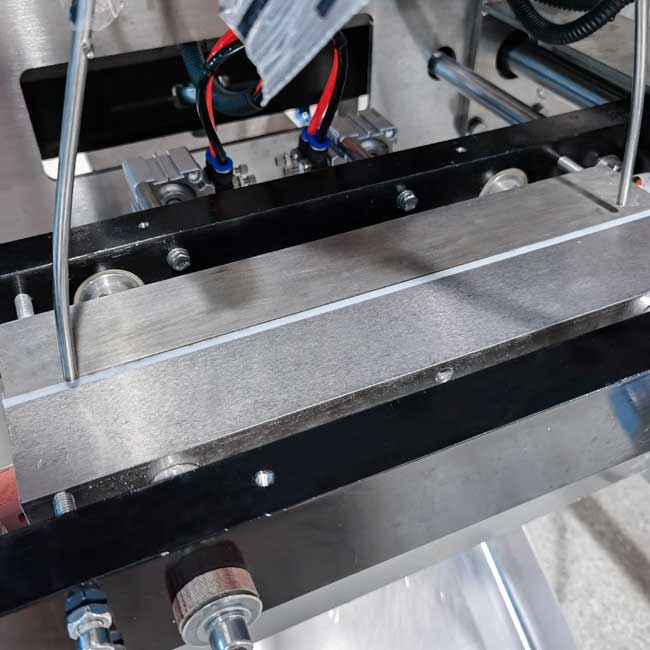

- Use imported cylinders to ensure good bagging sealing and clear sealing lines, prevent package bags from leaking air and reduce scrap rate.

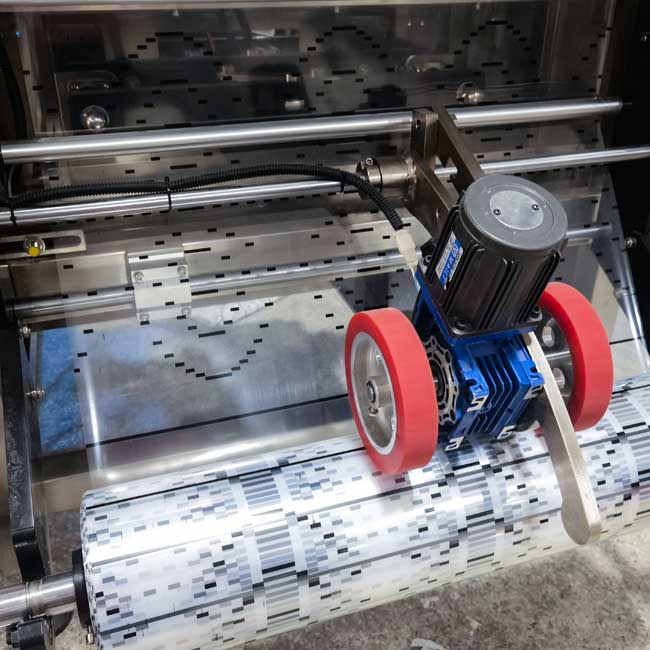

- It is more convenient to replace the packaging film with an external film placement mechanism.
- Multiple language operating systems.
Parameter
| Air Consumption Consumption | 0.65mpa, 2.5m³ / min | |||||
| Packaging Film Width | Max.820mm | |||||
| Bag Style | Pillow bag | |||||
| Bag Length | 100-600mm | |||||
| Bag Width | 200-400mm | |||||
| Max Outer Diameter of Coil | Max.360mm | |||||
| Packing Speed | 5-50bags / min | |||||
| Packaging Film Thickness | 0.04-0.08mm | |||||
| Power Specifications | 220V, 50Hz / 60Hz,4kW | |||||
| Packing Dimension (L*W*H) | (L)1950*(W)1460*(H)2550mm | |||||
| Packaging Materials | Composite film / PE film | |||||
| Total Power | 4kw | |||||
| Overall Weight | 700kg | |||||
Application
| Packaging Format Range | Adjustment Method | Packing Way | Packing Speed Range | Special Process | ||
| Puffed | 50-1000g | Display control | Back seal | 5-50bags / min | Need to filling nitrogen / A pre-clamping device / supporting device / Bag exhaust | |
| Dried Fruits / Nuts | 100-10000g | Display control | Back seal / Gusset bag | 5-40bags / min | A pre-clamping device / supporting device / Bag exhaust | |
| Fertilizers | 100-10000g | Display control | Back seal | 5-30bags / min | A pre-clamping device / supporting device / Bag exhaust | |
| Feed | 100-10000g | Display control | Back seal | 5-30bags / min | A pre-clamping device / supporting device / Bag exhaust | |
| Frozen | 100-10000g | Display control | Back seal | 5-30bags / min | Multi-head scale with dimpled surface / A pre-clamping device / supporting device / Bag exhaust | |
| Grains | 100-10000g | Display control | Back seal / Gusset bag | 5-30bags / min | A pre-clamping device / supporting device / Bag exhaust | |
