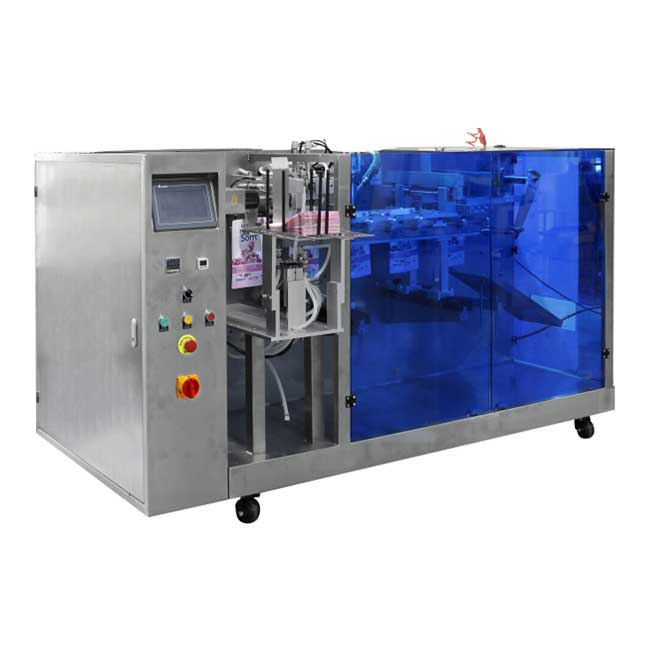

Powder & Liquid Horizontal Bag Packaging Machine

The powder & liquid horizontal preformed bag packaging machine, with a special design, can be applied to different types of preformed bags, standing bags, zipper bags, three-side sealed and four-side sealed bags. The horizontal preformed bag packaging replaces the manual packaging and reduces the labor cost.

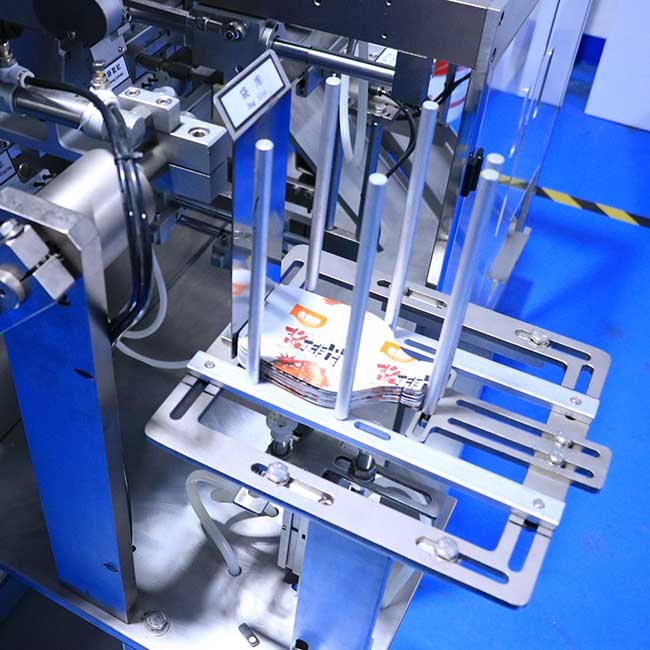

The bag slot is convenient and simple for bag placing, and it is equipped with an active bag-pressing device.
Equipped with an imported pressure sensor to achieve the effect of feeding and sealing, saving packaging bags.
Strong sealing, smooth and beautiful.
Fully automatic process of feeding, metering, filling sealing, printing date, conveying, and discharging.
Multi-language control system.

CUSTOMIZE MY PRODUCTS

Parameter

SK-G170S

Model	SK-G170S
Types of Packaging Bags	Stand bag, zipper bag, flat bag ( 3 side seal, 4 side seal, bag with punched tote handle, pillow bag etc.)
Bag Size	W8: 5-170mm L: 100-300mm
Packing Capacity
Packing Speed	20-50 bags / min
Air Consumption	0.7m³ / min
Power Specifications	220V / 50Hz or 60Hz single-phase 1kW
Total Weight	800kg
Options	Zipper opening device, bag holding device, air filling device, finished conveyor, filling equipment

SK-G210S

Model	SK-G210S
Types of Packaging Bags	Stand bag, zipper bag, flat bag ( 3 side seal, 4 side seal, bag with punched tote handle, pillow bag etc.)
Bag Size	W: 100-210mm L: 150-380mm
Packing Capacity	50-1000ml
Packing Speed	20-40 bags / min
Air Consumption	0.7m³ / min
Power Specifications	220V / 50Hz or 60Hz single-phase 1kW
Total Weight	950kg
Options	Zipper opening device, bag holding device, air filling device, finished conveyor, filling equipment

SK-G260S

Model	SK-G260S
Types of Packaging Bags	Stand bag, zipper bag, flat bag ( 3 side seal, 4 side seal, bag with punched tote handle, pillow bag etc.)
Bag Size	W: 140-260mm L: 180-400mm
Packing Capacity	200-2000ml
Packing Speed	20-30 bags / min
Air Consumption	0.7m³ / min
Power Specifications	220V / 50Hz or 60Hz single-phase 1kW
Total Weight	1100kg
Options	Zipper opening device, bag holding device, air filling device, finished conveyor, filling equipment

Application

SK-G170S

	Packaging Format Range	Adjustment Method	Packing Way	Packing Speed Range	Special Process
Puffed	10-30g	Display control	Multi-head Combination Scale	20-50 bags / min	None
Dried Fruits / Nuts	10-500g	Display control	Multi-head Combination Scale	20-50 bags / min	None
Fertilizers	10-500g	Display control	Linear scale	20-50 bags / min	None
Feed	10-500g	Display control	Linear scale	20-50 bags / min	None
Frozen	10-500g	Display control	Multi-head Combination Scale	20-50 bags / min	Multi-head scale with dimpled material
Grains	10-500g	Display control	Multi-head Combination Scale	20-50 bags / min	None

SK-G210S

	Packaging Format Range	Adjustment Method	Packing Way	Packing Speed Range	Special Process
Puffed	10-50g	Display control	Hot sealiing	20-40 bags / min	None
Dried Fruits / Nuts	10-1000g	Display control	Hot sealiing	20-40 bags / min	None
Fertilizers	10-1000g	Display control	Hot sealiing	20-40 bags / min	None
Feed	10-1000g	Display control	Hot sealiing	20-40 bags / min	None
Frozen	10-1000g	Display control	Hot sealiing	20-40 bags / min	Multi-head scale with dimpled material
Grains	10-1000g	Display control	Hot sealiing	20-40 bags / min	None

SK-G260S

	Packaging Format Range	Adjustment Method	Packing Way	Packing Speed Range	Special Process
Puffed	10-70g	Display control	Hot sealiing	20-30 bags / min	None
Dried Fruits / Nuts	10-1500g	Display control	Hot sealiing	20-30 bags / min	None
Fertilizers	10-1500g	Display control	Hot sealiing	20-30 bags / min	None
Feed	10-1500g	Display control	Hot sealiing	20-30 bags / min	None
Frozen	10-1500g	Display control	Hot sealiing	20-30 bags / min	Multi-head scale with dimpled material
Grains	10-1500g	Display control	Hot sealiing	20-30 bags / min	None
