Description
Video Description

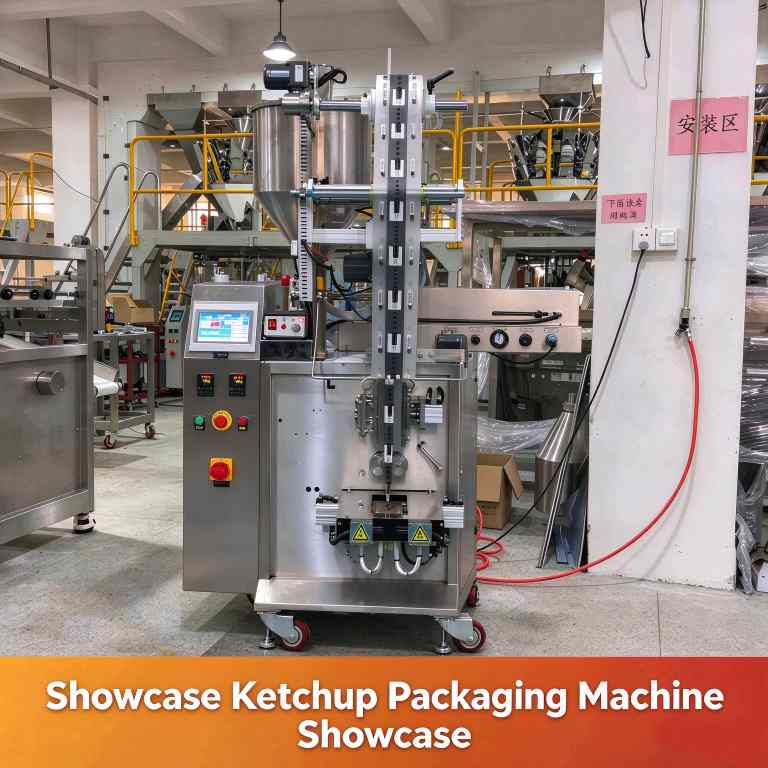

The SK-L320 Tomato Ketchup Packaging Machine is designed for automatic measuring and pouch packaging of tomato ketchup and other liquid sauces. The video shows the machine packaging 14g tomato ketchup in three-side-seal bags.
The tomato ketchup is fed from a round storage tank into the filling hopper. A pneumatic pump accurately doses the ketchup according to the preset 14g filling weight. The packaging machine then automatically completes film forming, production date printing, ketchup filling, bag sealing, cutting, and finished product discharge.
In addition to tomato ketchup, the SK-L320 can also be used for meat sauce, chili sauce, salad dressing, vinegar, soy sauce, water, and other suitable liquid and sauce products.
Depending on the product and packaging requirements, the machine can produce back-seal, three-side-seal, or four-side-seal bags.
The actual packaging speed depends on the product characteristics, filling weight, and feeding method.
Tomato Ketchup Packaging Machine Specifications
| Parameter | Specification |
|---|---|
| Model | SK-L320 |
| Application | Tomato Ketchup, Sauces & Liquid Products |
| Bag Types | Back Seal, Three-Side Seal, Four-Side Seal |
| Bag Width | 30–150 mm |
| Bag Length | 50–200 mm |
| Packing Range | 50–300 ml |
| Packing Speed | 15–65 bags/min* |
| Mechanical Weight | 350 kg |
| Power Supply | 220V, Three-Phase, 50Hz/60Hz |
| Total Power | 2 kW |
| Compressed Air Consumption | 0.6 m³/min |
| Compressed Air | Provided by the user |

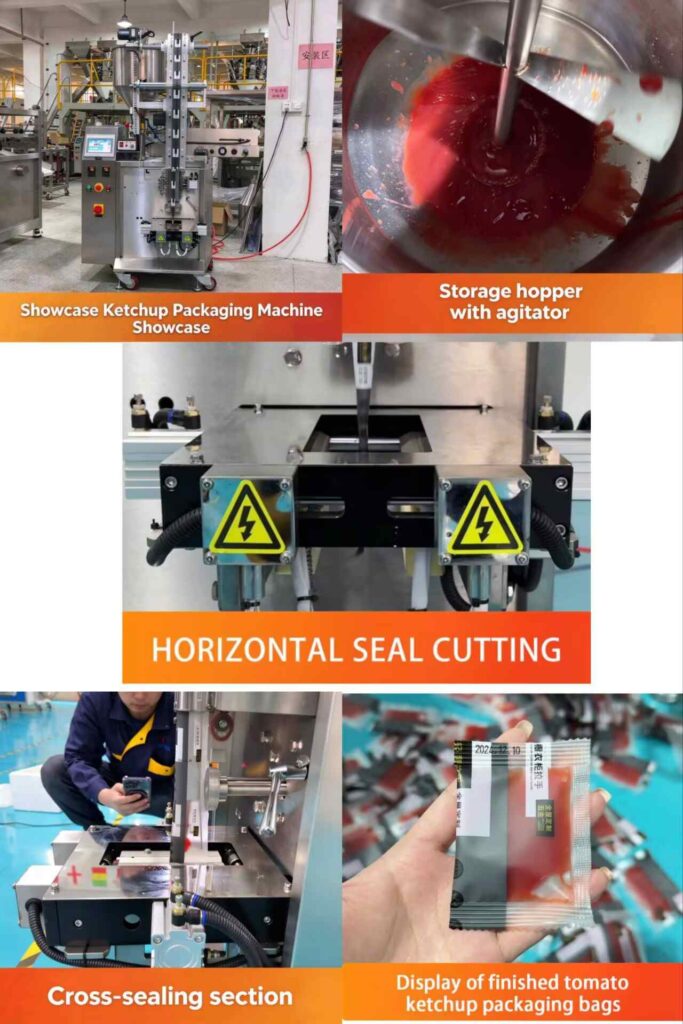

Packaging Process

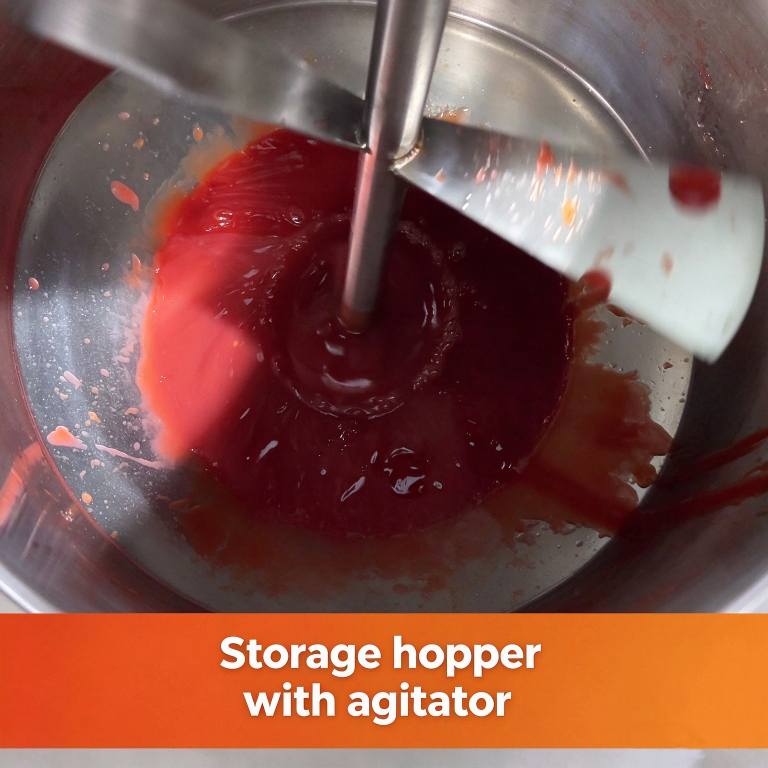

- Tomato Ketchup Feeding – Tomato ketchup is fed from the storage tank into the filling hopper.
- Automatic Dosing – A pneumatic pump accurately doses the ketchup according to the preset filling weight, such as 14g.
- Bag Forming – The packaging machine automatically forms the packaging film into the selected bag style.
- Date Printing – The production date or other required information is printed on the packaging film.
- Ketchup Filling – The accurately measured tomato ketchup is automatically filled into the formed pouch.

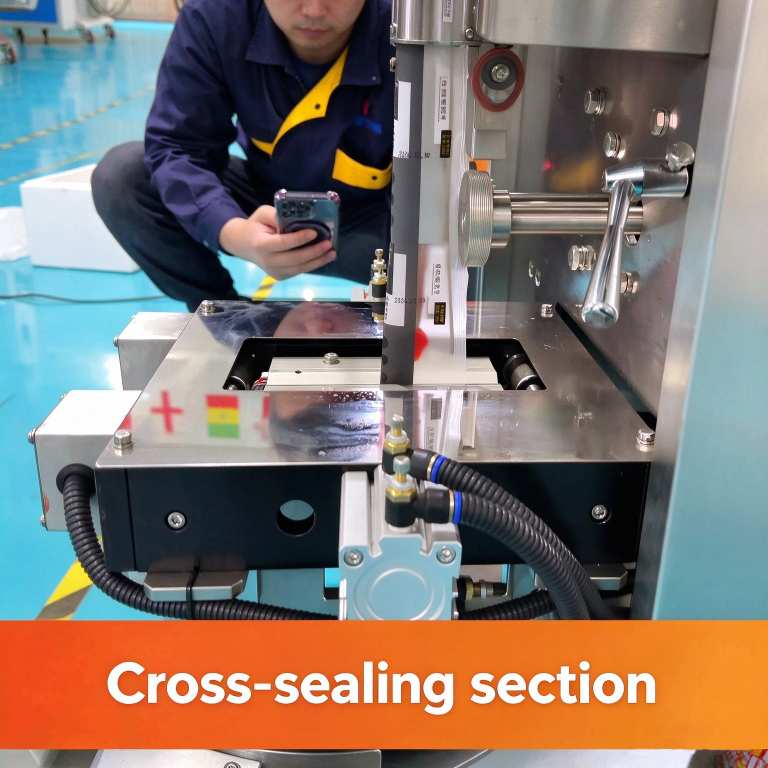

- Heat Sealing – The filled pouch is automatically sealed according to the selected bag type.

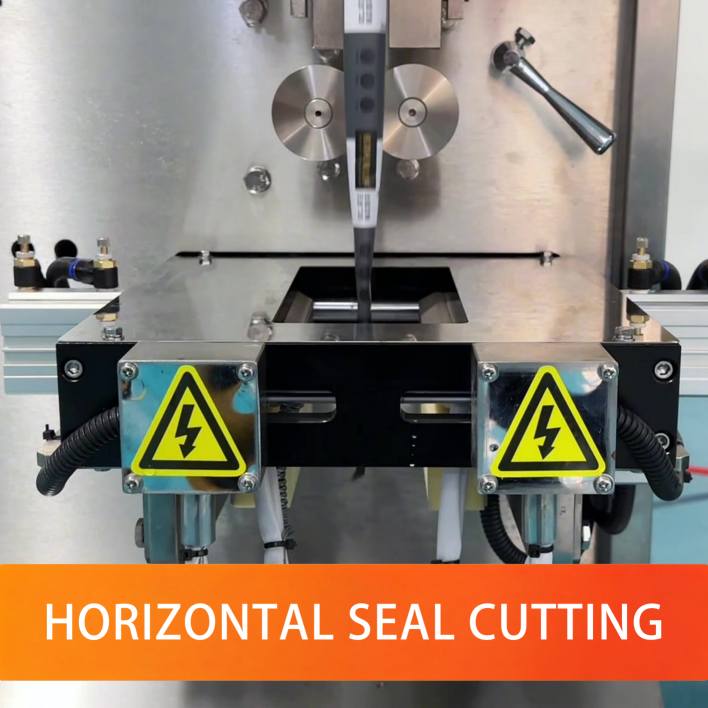

- Cutting – The sealed pouches are automatically separated by cutting.

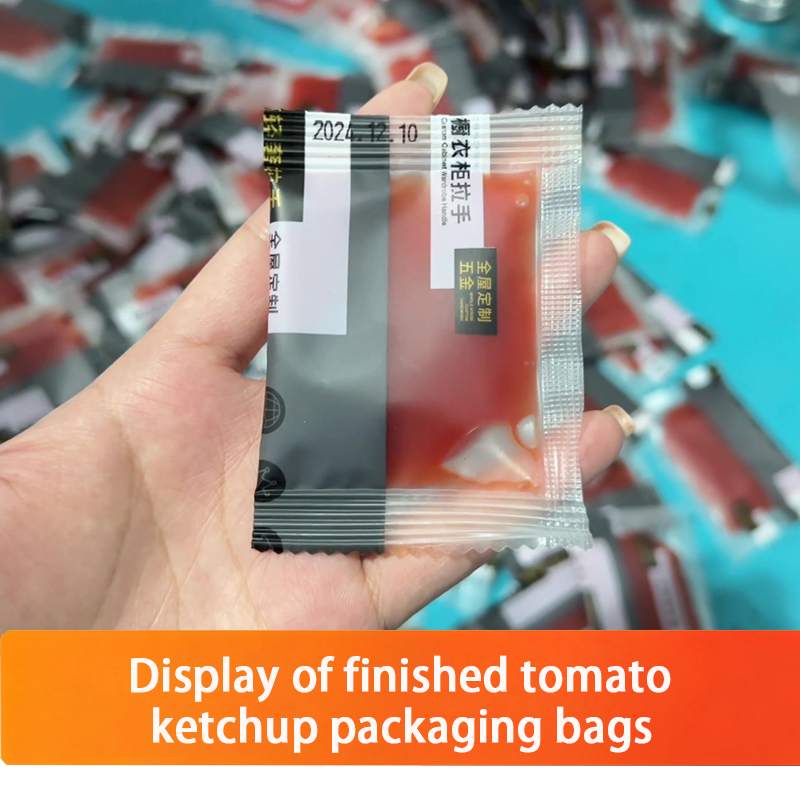

- Finished Pouch Output – The finished tomato ketchup pouches are discharged from the machine for collection or further processing.
The SK-L320 automatic sauce packaging machine is suitable for:
Tomato Ketchup， Chili Sauce ，Meat Sauce，Salad Dressing，Soy Sauce，Vinegar，Water，Other Liquid and Sauce Products
Bag Types
The machine supports three main bag styles:
Back-Seal Bag – film is sealed at the back of the pouch.
Three-Side-Seal Bag – three sides are sealed, suitable for small sauce and liquid sachets.
Four-Side-Seal Bag – four sides are sealed for a flat and neat pouch appearance.
The bag width, bag length, filling volume, and packaging parameters can be adjusted according to the product and packaging requirements.
The actual packaging speed depends on the product characteristics, filling weight, and feeding method.
FAQ
Q1. Can the SK-L320 package 14g tomato ketchup?
Yes. The machine can be configured for small-volume tomato ketchup packaging according to the product characteristics and required filling weight.
Q2. What bag types are available?
The SK-L320 supports back-seal bags, three-side-seal bags, and four-side-seal bags.
Q3. What products can be packed by this machine?
The machine can package tomato ketchup, chili sauce, meat sauce, salad dressing, soy sauce, vinegar, water, and other suitable liquid or sauce products.
Q4. Can the machine print the production date?
Yes. A date coding system can be integrated into the packaging process for printing the production date or other required information.
Q5. Is the filling volume adjustable?
Yes. The filling system can be configured and adjusted according to the required filling volume and product characteristics.
Inquiry CTA
Looking for a tomato ketchup, sauce, or liquid pouch packaging machine?
Send us your product name, filling weight, bag size, and preferred bag type. We can recommend a suitable filling and packaging solution for your product.
Contact Soonkpack for a Customized Packaging Solution
