Looking for an Automatic Ice Bagging Machine? The Ultimate 3+ TPH Packaging Line Guide by Soonkpack
In peak summer seasons, industrial ice plants face an operational paradox: market demand skyrockets, yet packaging throughput stalls due to labor bottlenecks. Manual bagging in cold, wet environments suffers from high staff turnover, inconsistent bag weights, and slow speeds. For modern ice producers, upgrading to a fully automatic 1–5 kg ice packaging system delivering over 3 tons per hour is no longer just an operational upgrade—it is the single most effective way to protect profit margins and scale production.
1. High-Speed Output: Reaching 3 Tons Per Hour
Packaging 3 tons (3,000 kg) of ice per hour requires consistent precision. When handling standard 1 kg to 5 kg bags, this translates to a packaging speed of approximately 10 to 25+ bags per minute (BPM) depending on the targeted package volume. Achieving this speed manually requires a team of 3 to 4 operators working at peak physical exertion—a speed impossible to sustain over an 8-hour shift, let alone a 24-hour cycle.

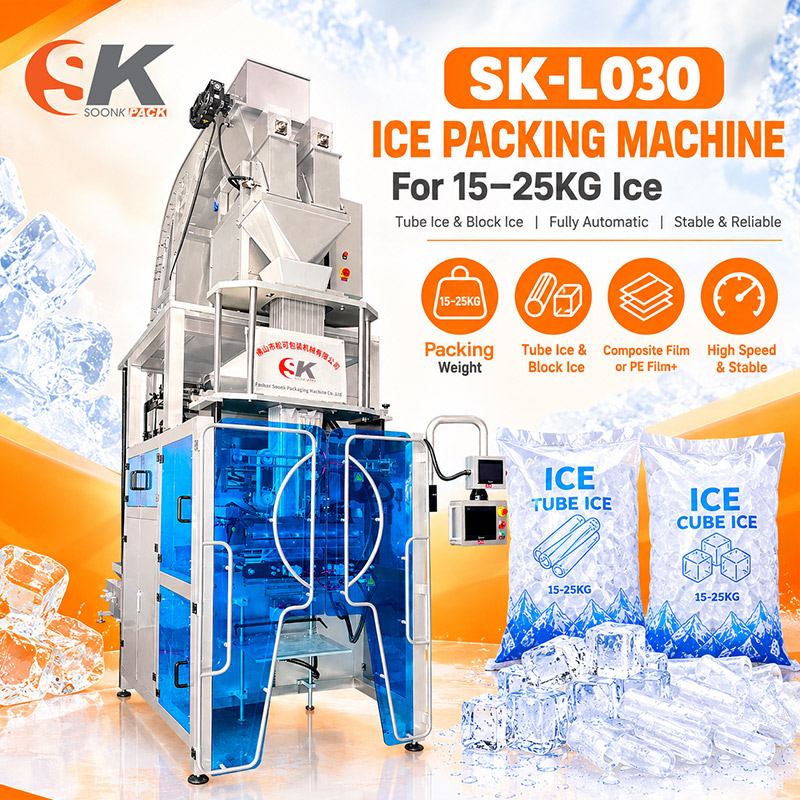

An automated Vertical Form Fill Seal (VFFS) bagging system integrated with Soonkpack’s specially designed ice screw weigher ensures continuous, precise dosing tailored specifically for ice properties, with options for 2-head or 3-head configurations. The system dynamically adjusts film feed and sealing temperature to guarantee flawless bag formation at maximum speed.
2. Direct Labor Reduction: Replacing 3 to 4 Operators per Shift
Manual / Semi-Automatic Line:
Manual and semi-automatic packaging lines rely heavily on labor at every single step: a worker must manually open the bag, position it to catch the ice, weigh the load, seal the bag using a manual tie or a semi-automatic sealer, and then physically lift and transport the finished bag onto a conveyor toward the cold storage room.
Fully Automatic Workflow:
In contrast, an automatic bagging line consolidates all of these separate, labor-intensive stages into a single, seamless workflow—dramatically reducing labor dependence and boosting throughput. The elevated feeder connects directly to the ice storage bin to feed the system automatically. From there, the packaging machine fully automates every single step: film bag-making, date printing, ice filling, sealing, cutting, and discharging the finished bags via an output conveyor to the downstream delivery line.
| Operation Stage | Manual / Semi-Automatic Line | Fully Automatic Packaging Line |
| Dosing & Filling | 1 Worker (Pedal/Lever control) | Fully Automatic Ice Packaging Machine |
| Bag Holding & Sealing | 1 Worker (Manual heat sealer) | Automated Vertical Form-Fill-Seal |
| Transfer & Stacking | 1–2 Workers | 1 Operator (Monitors system + Crate loader) |
| Total Crew Required | 3 – 4 Workers / Shift | 1 Operator / Shift |
By replacing 3 to 4 operators per shift across a typical three-shift (24-hour) operating schedule, an ice plant eliminates 8 to 10 full-time labor slots daily, dramatically lowering payroll expenses and management overhead.
3. Key Machine Specifications (Engineered for Ice Plants)
To ensure high performance in freezing environments, our machinery is built according to rigorous industrial standards:
| Technical Parameter | Specification Detail |
| Packaging Speed | 3+ Tons / Hour (10 – 25+ Bags/Min depending on bag weight) |
| Bag Weight Range | 1.0 kg – 5.0 kg (Customizable for 10 lb / 20 lb) |
| Construction Material | Food-Grade SS304 Stainless Steel |
| Waterproof Rating | IP65 / IP66 Washdown Compliant |
| Infeed & Dosing | Dedicated 2/3-head ice weigher: ±150g accuracy. |
| Operation Cycle | 24/7 Heavy-Duty Continuous Operation |
4. Engineered for 24/7 Continuous Operation in Wet Environments
The primary challenge in ice packaging machinery is not speed—it is durability in freezing, high-humidity environments. Standard packaging machinery fails due to electrical shorts, frozen mechanical linkages, and stainless steel corrosion.
Key Engineering Features for Non-Stop Reliability:
- Food-Grade Stainless Steel Construction: Complete rust protection against meltwater and heavy moisture exposure.
- IP65/IP66 Waterproof Washdown Rating: Sealed electrical cabinets allow easy hose-down cleaning without damaging sensitive electronics.
- Anti-Freezing Heating Elements: Heated sealing jaws and anti-condensation components prevent ice buildup from jamming the film-drive assembly.
- Specialized Ice Dosing Precision: Designed specifically for frozen product characteristics to prevent bridging and ensure uniform feeding.
5. Financial Impact & Return on Investment (ROI)
Investing in automation yields rapid financial returns. Consider an ice factory operating 24 hours a day during a 180-day peak season:
- Daily Labor Cost Saved: 6 replaced worker-shifts × $120/shift = $720 / day.
- Seasonal Labor Savings: $720/day × 180 days = $129,600 in direct wage savings.
- Product Giveaway Savings: Reducing weight variance over 3,000+ tons saves tons of salable ice annually.
In most commercial setups, the capital expenditure of the automated ice bagging machine is fully recovered within 6 to 10 months of operation.
Conclusion: Partnering with Soonkpack for Unmatched Packaging Expertise
When peak summer demand hits, operational bottlenecks are the enemy of profitability. Transitioning from labor-heavy manual bagging to a fully automated packaging line is the single most strategic investment an industrial ice plant can make to protect margins and scale output.
At Soonkpack, we don’t just sell standard packaging machinery—we engineer purpose-built ice packaging solutions tailored specifically to the unique physical properties of ice and harsh freezer environments. From our proprietary 2-head and 3-head ice screw weighers designed to prevent ice bridging, to our heavy-duty, IP66-rated moisture-proof VFFS systems, Soonkpack delivers unparalleled reliability and speed when you need it most.
Elevate your ice production today with Soonkpack—where specialized engineering meets maximum ROI.
